The VISIO range embodies the features which together make the perfect inset fire‚ DEFRA exempted, Danish quality manufacturer, stunning minimalist design, sliding rise and fall door, 80% efficiency, crystal clear infrared glass and optional wide installation frame.
One day all inset fires will be built this way!
Featuring an all-glass rise and fall door which offers a totally unobstructed view of the fire, VISIO 1 is the front facing model in the range.
With a heat output of 5-9 kW this luxury fire is an ideal fit for the typical UK home.
The fire is available with black or stainless steel door frame and optional matching wide cover frame.
|Stove outer measurements||905 – 610 – 1375 mm|
|Firebox, interior measurements||637 – 330 – 475 mm|
|Minimum fireplace opening||770 – 0 – 432 mm|
|Frame, outer measurements (W-H)||781 – 444 mm – 0 mm|
|Flue exit (diameter)||Ø 200 mm|
|Nominal output||7 kwh|
|Min-max output||5- 9 kwh|
|Area heated (at -4∞F (-20∞C))||75- 135 m2|
|Distance to inflamable materials|
|To wall at side||300 mm|
|To wall at back||150 mm|
NOMINAL OUTPUT: Min 5kW Max 9kW
GROSS EFFICIENCY: 80% (88% Nett)
FUEL TYPE: Any dry wood based fuel
APPLIANCE TYPE: Dry system
DEFRA Smoke Control Exempt: YES
CE MARKED: YES
HETAS APPROVED: NO
AREA HEATED @ -1∞C: 100m3 (3600 FT3) Approx.
FLUE SIZE: 2000mm

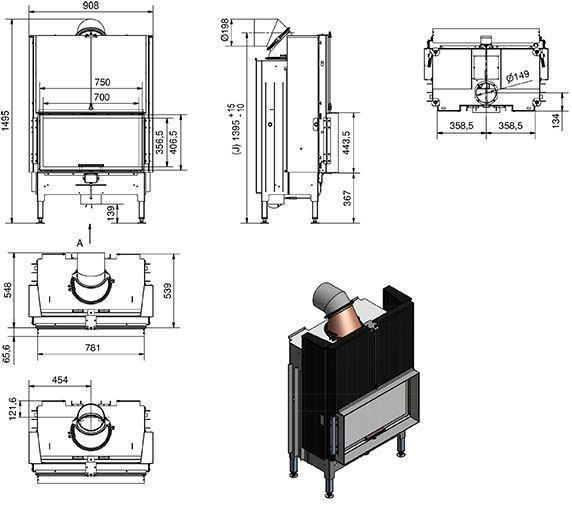

Download the Visio 1 CAD Drawing ( DWG format )
Download the Visio 1 CAD Drawing (PDF format )
